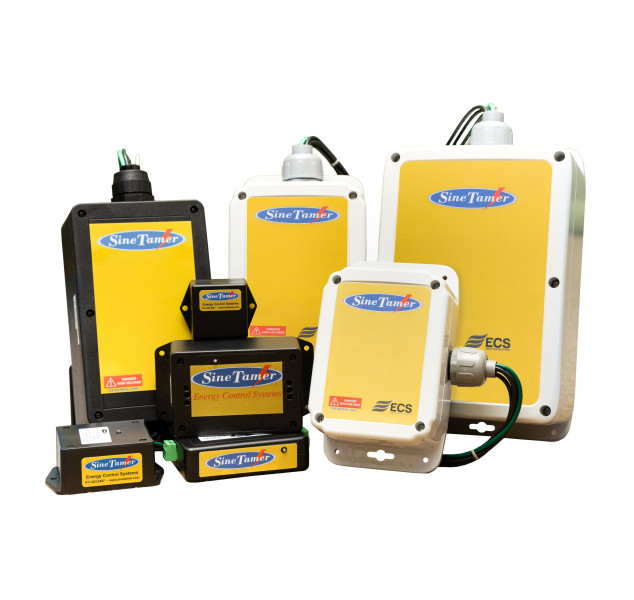

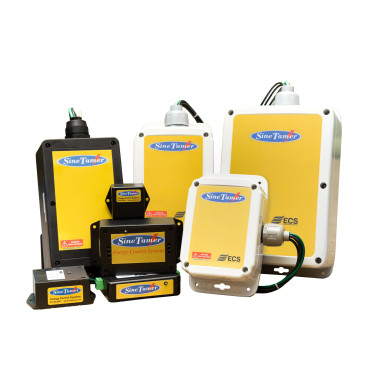

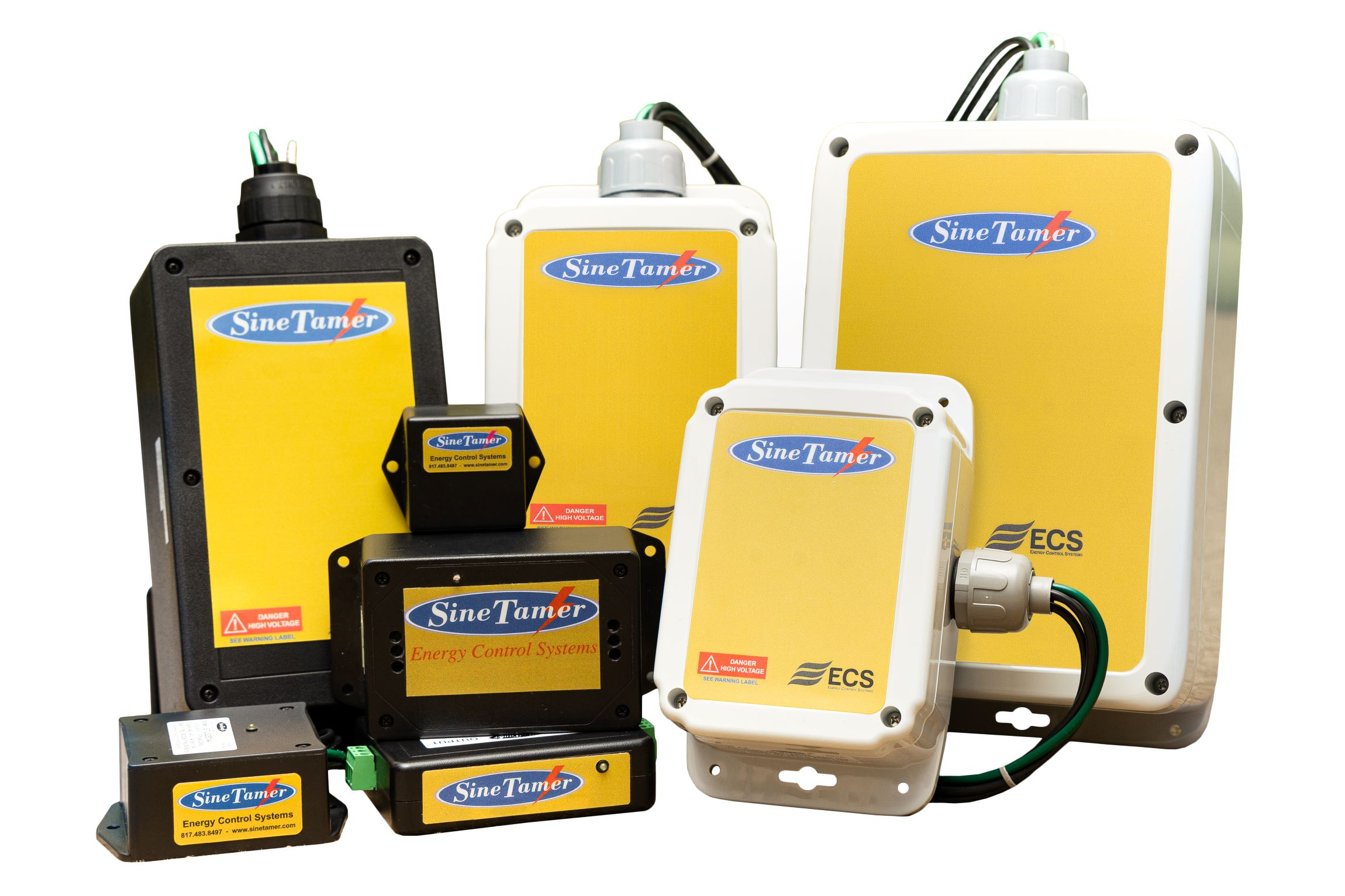

SineTamer AC 3 Phase

Description

CPxxLAY2-N4 Series

The SineTamer© CP series units blends outstanding high-energy “impulse” suppression with unsurpassed transient filtering protection of our Frequency Attenuation Network®. This durable device is intended for connection to motor generator set mains. Compact size and non-metallic enclosure design also allow it to be installed directly inside main genset equipment disconnects. The internal installation provides the absolute shortest possible lead length and optimum performance.

The CP series is extremely effective in limiting internally generated transients as well as lightning and utility company induced surges. Please discuss specific installations with your local representative.

This voltage disturbance filter has features that are not available in devices costing many times its price.

Maintenance Free operation and 25 Year Unlimited Free Replacement Warranty provide peace of mind.

Description:

Parallel connected, dynamic power filter (DPF) utilizing both high-energy handling and
frequency tracking circuitry for virtual elimination of impulse and ring wave type transients.

Application:

Designed for use at ANSI/IEEE Categories C, B and A and IEC 61643 Category 1,2 and 3
exposure levels. Designed to protect sensitive/critical loads fed from distribution panels,
branch panels and/or individual equipment panels.

Warranty:

25 Years Unlimited Free Replacement

Product Qualifications:

Listed to ANSI/UL 1449-2006 (4th Edition) by UL. ML record: E363345; CSA file: 259700, UL1283* and CE Compliant, (* Type 2 SPDs only) ISO 9001:2008, ANSI C62.72-2007,
IEC 61643-11 Class 2, One Port SPD

LA series

The SineTamer: LA series of units blends outstanding high-energy “impulse” suppression with unsurpassed “ring wave” transient protection Frequency Attenuation Network®. This durable device is intended for general purpose and sensitive/critical load applications. Compact size and non-metallic enclosure design also allow it to be
installed directly inside electrical panels and individual equipment disconnects. The internal installation provides the absolute shortest possible lead length and optimum performance. The LA-ST series is extremely effective in limiting internally generated transients and is an absolute must on panels feeding office locations and/or
microprocessor based equipment. Please discuss specific installations with your local representative.
This economical device has features that are not available in devices costing many times its price. Its compact size makes installation a breeze. Maintenance Free operation and 25 Year Unlimited Free Replacement Warranty provide peace of mind.

GENERAL
Description: Parallel connected, transient voltage surge suppressor device utilizing both high-energy handling and frequency tracking circuitry for virtual elimination of impulse and ring wave type transients.
Application: Designed for use at ANSI/IEEE Categories C, B and A and IEC 61643 Category 1,2 and 3 exposure levels. Designed to protect sensitive/critical loads fed from distribution panels, branch panels and/or individual equipment panels.
Warranty: 20 Years Unlimited Free Replacement
Product Qualifications: Listed to ANSI/UL 1449-2006 (4th Edition) by UL. ML record: E363345; CSA file: 259700, UL1283* and CE Compliant, (* Type 2 SPDs only)

ISO 9001:2008, ANSI C62.72-2007,
IEC 61643-11 Class 2, One Port SPD.

RM series

The SineTamer RM series of units blends outstanding high-energy “impulse” suppression with excellent “ring-wave” transient protection with our Frequency Attenuation Network®. This durable device is intended for general purpose and sensitive/critical load applications. The RM-STxx is typically installed at small to medium service entrances, distribution and sub-distribution panels. Please discuss specific installations with your local representative. Compact size and non-metallic enclosure design also allow it to be installed directly inside electrical panels and individual equipment disconnects. The internal installation provides the absolute shortest possible lead length and optimum performance.
This economical device has features that are not available in devices costing many times its price. Its compact size makes installation a breeze. Maintenance Free operation and 20 Year Unlimited Free Replacement Warranty provide peace of mind.

GENERAL
Description: Parallel connected, transient voltage surge suppressor device utilizing both high-energy handling and sine-wave tracking circuitry for virtual elimination of impulse and ring wave type transients. (actively tracking the AC sine wave)
Application: Designed for use at ANSI/IEEE Categories C, B and A with susceptibility up to medium exposure levels. Designed to protect sensitive/critical loads fed from distribution panels, branch panels and/or individual equipment panels.
Warranty: 15 Years Unlimited Free Replacement Product Qualifications: Listed to ANSI/UL 1449-2006 (4th Edition) by UL. ML record: E363345; CSA file: 259700, UL1283*
and CE Compliant, (* Type 2 SPDs only) ISO 9001:2008, ANSI C62.72-2007, IEC 61643-1 Class 2&3

KEY FEATURES:
• Discrete “All Mode” Circuitry: Directly Connected Protection Elements in “All Modes” as recommended by IEEE Std. 1100-2005
• Industry Leading Measured Limiting Voltage (let-through) Performance
• Local & Remote Diagnostics
• Independent Verification of Performance and Safety
• Component-Level, Thermal Fusing
• 10 Year Unlimited Free Replacement Warranty

APPLICATION

The RM-VS/VT210 series was developed to answer a broad variety of demands from our customers. This device is robust enough to handle the punishment of industrial applications of up to 800V AC, while providing protection from transients that may be generated internally. The constant bombardment of this combination of transients can damage valuable equipment and waste valuable budget dollars.

ST-TDF3xx-DINx
International DIN SPD/TDF
DIN Rail Mounted Surge Protective Device and
Transient Dissipation Filter

The TDF Family of devices provide the best ring-wave and oscillatory transient protection available along with robust impulse transient protection. These devices are intended for multi-phase applications at locations feeding sensitive / mission-critical equipment. They are extremely effective in limiting transients generated inside the
facility, switching transients originating from outside the facility – as well as lightning induced surges – and are an absolute must on circuits feeding critical microprocessor-based equipment.
This DIN rail mounted surge protective device is unique in that it is designed to protect against the entire spectrum of surges encountered in today’s electrical environment – not just impulse surge originating from the power distribution system. Its compact size makes installation a breeze. The unique design of this device makes it among the most versatile SPD devices on the market with performance specs that are superior to our competition. These units are just another example of providing superior protection for modern and highly sensitive electronic systems.

KEY FEATURES:
• Composite enclosure
• DIN rail mountable
• Wire clamping box terminals
• Power frequency – 50-60 Hz
• Surge current capacity 50 kA 8/20 μs Class 2
• Optional 50ka 10/350 μs (-DIN1) Optional 100ka 10/350 μs (-DIN2)
• Low voltage protection level on ring wave transients with exclusive Frequency Attenuation Network™
• Degradation failure indication and optional remote signal contact
• Pluggable Class 2 SPD module for easy replacement
• Five Year Warranty (with DIN module). (One Year on module alone.)
• Global patented thermal disconnector design with arc extinguishing device, fail-safe & self-protected, quick thermal response and perfect circuit cut-off function.
