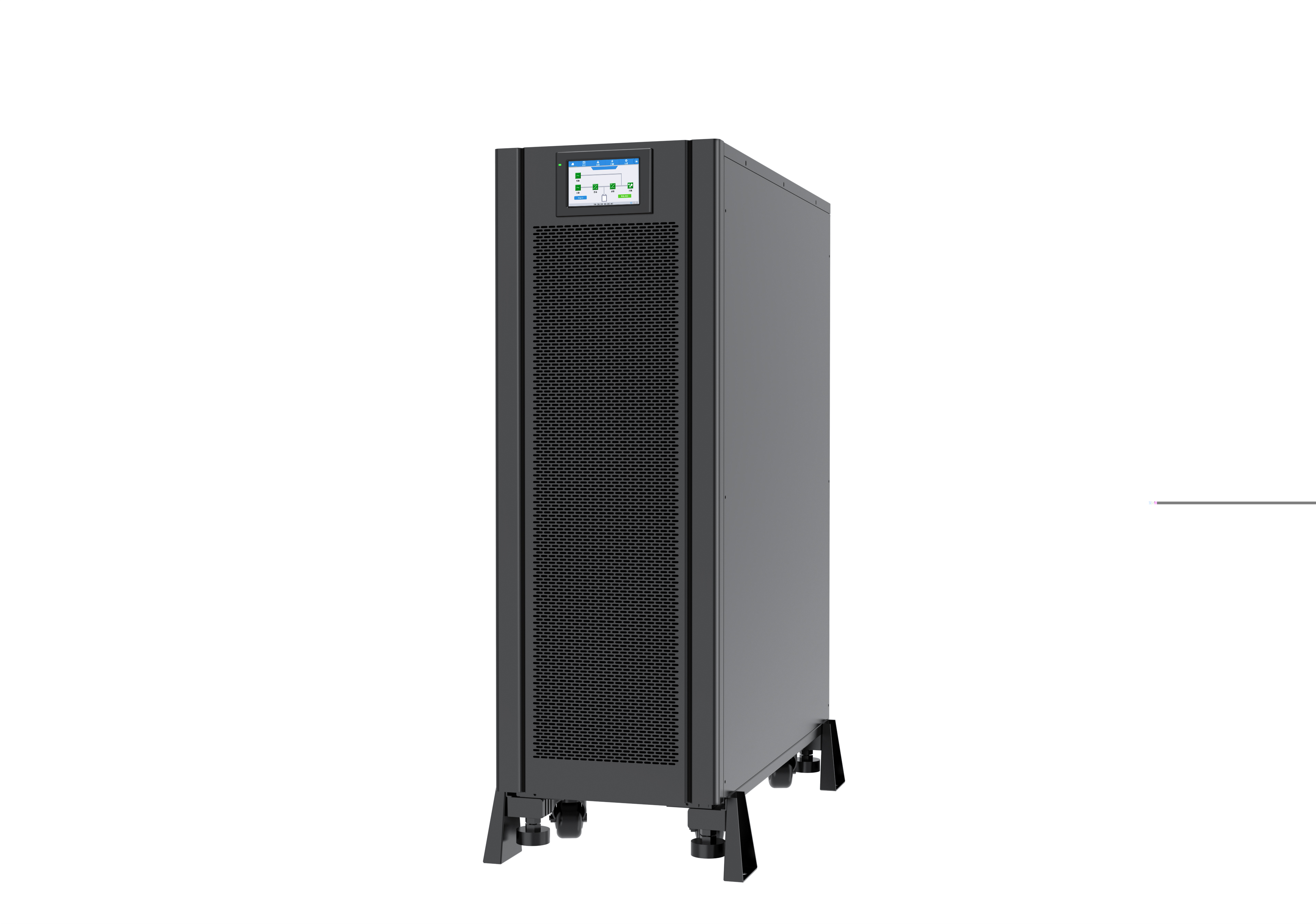

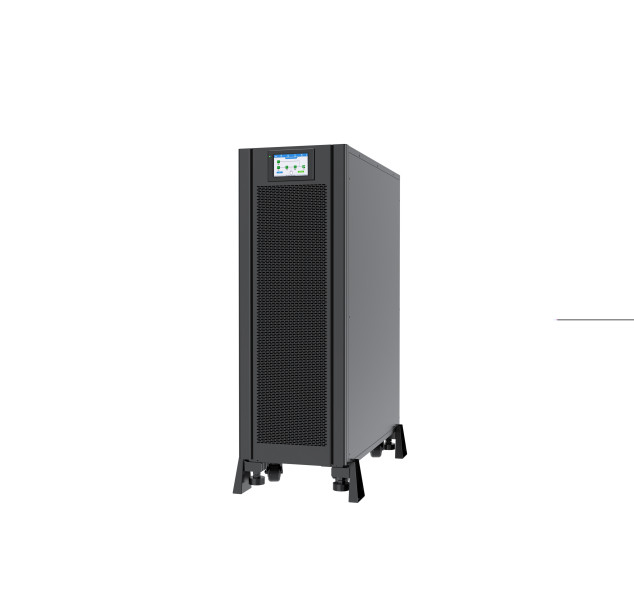

INSERT 3-Phase Secondary Supply

• True On-Line Double Conversion technology provides excellent output voltage performance regardless of power interference and type of powered loads
• IGBT rectifier the most advanced technology providing very low THDi and a high input power factor of 0.99
• Automatic bypass uninterruptible power supply provides uninterrupted power to consumers in critical situations such as overheating or failure. Service bypass allows servicing of equipment without shutting down the powered.
• Communication:
• USB, RS232, RS485 for reading and monitoring parameters, management operation and configuration of the UPS
• DryContact relay contacts for interfacing with BMS systems SNMP integration with systems management network NMS.SNMP integration with NMS-type network management systems
• Emergency power off Connector (EPO) for providing remote disconnection of power supply to consumers in case of fire
• The 5.0" LCD color touchscreen control and monitoring panel makes it easy to UPS operation, allows diagnostics of parameters and power supply operation mode and allows event logging.
• The highly efficient charging system gives the UPS the ability to quickly charge battery banks with very large capacities, for achieving long autonomous operation times.
• The unit's high efficiency (>96%) limits the heat emitted, making it making the eventual cooling of rooms simpler, and the operation of the UPS is much cheaper.
• ECO-Mode allows a significant reduction in the cost of operation of the device and virtually eliminates heat emission thanks to >99% efficiency.
• Internal batteries up to 160pcs x 9Ah ensure the unit's small size with using basic battery packs. The batteries do not require additional space for installation.
• Adjustable battery quantity allows you to fine-tune the amount of batteries for the required backup time.
• Conformal coating protecting the UPS boards insulates the electronic components electronics from adverse environmental conditions like moisture, dust, dust and surges.
• Automatic diagnostics and digital control (32 bit DSP x2) guarantees full device performance, component control and operating parameters without user intervention.
• Redundant fans ensure UPS operation even in case of failure of 1 or 2 fans, with limited output power
• Highest output power factor of 1.0 allows for load the power supply with full active power
• The wide input voltage range in normal operation ensures stable operation of the device without the need to use batteries, which significantly contributes to extending their service life
• The wide input frequency range in normal operation mode allows the power supply to be freely used in a network with unstable parameters and with power supply from a generator set.
• Advanced battery management guarantees optimal charging and utilization of the battery bank, increases battery life and reduces operating costs. Temperature compensation function charging voltage.
• The excellent quality of the output voltage, achieved through the use of a 3-level IGBT inverter, with the use of advanced PWM control technology, makes it possible to deliver a voltage with stable parameters, regardless of energy disturbances and the type of powered devices. High overload capacity provides protection of the device and continuity of power supply when transient transients occur.
• Advanced software that allows the user to fully control over the device and powered loads
• Configurability of operating parameters nominal voltages, frequencies, preferred modes of operation, method of communication - greatly expands the range of of possible applications
• Redundant configurations:

- Redundant parallel operation for increased reliability

- Capacitive parallel operation for increased power

- HotStandby operation
