UMG 800

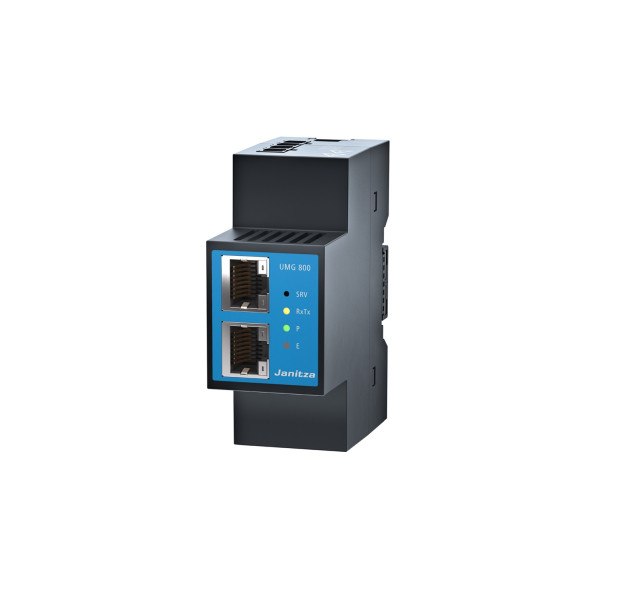

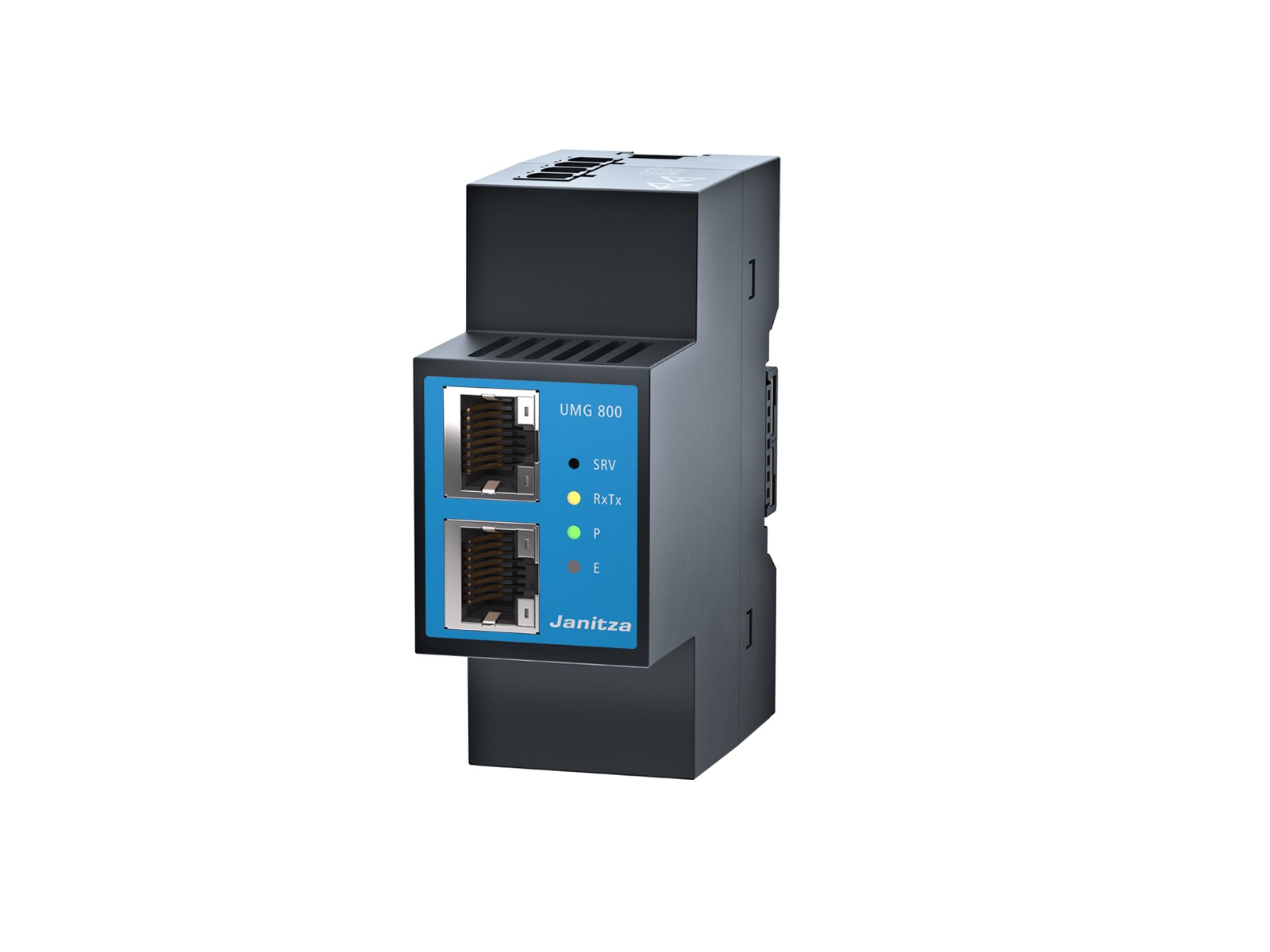

The UMG 800 records all necessary energy data in a space-saving, cost-effective way. The potential applications are practically endless. From individual feeder measurements to power quality analyzes to establishing complete measuring systems – the UMG 800 can be customized to meet your requirements (e.g. in data centers, production plants or distribution substation).

Basic data:

• Size of 2 sub-units
• 300 V CAT III
• Measuring accuracy: Voltage 0.2 %
• 4 GB data memory
• High sampling frequency (51.24 kHz)
• 1024 samples for voltage measurement
• Effective values of half waves 10 ms

Peripherals:

• RS-485
• 2 x Ethernet
• USB A

Communication:

• OPC UA
• NTP
• Modbus TCP/IP Gateway for up to 31 slaves

Gridded averages:

• Saves critical 200 ms min/max values in order to recognize load peaks at an early stage and avoid costly downtime
• Gridded or sliding average values: Recognize trends in good time and make decisions to ensure sustainable energy consumption

Modularity:

• Expand with up to 13 modules
• Up to 96 current measurement inputs
• Up to 182 digital inputs
• Up to 100 m bridging of measurement points via a connector module

Webserver:

• Integrated web server for ease of commissioning and configuration
• Convenient, remote monitoring, diagnostics, and maintenance

Measuring groups:

• With virtual meters - create and combine measured variables and measurement groups – totally without additional hardware
• Use virtual parameters and reduce hardware costs considerably (savings of up to 25% per measurement channel)
• Monitor and analyze energy consumption and power over several modules – even for 3- and 4-phase applications

USB connection:

• Convenient and safe fault analysis directly on site via a connectable external display
• Quick commissioning Quickly and easily upload device configurations and updates via USB

Ethernet:

• Dual Ethernet with switched mode and daisy chain function
• Maximize network capacity and safely connect other devices in series
• Double the network security and flexibility: Integration into two networks for safe and efficient data management
• Dedicated bandwidth for optimal power during critical processes

Modbus:

• Gateway for seamless integration of other devices from downstream measurement levels
• Extensive scope for communications with the combination of RS485 remote communication and high-speed Ethernet
• Fast initial commissioning due to fixed patterns on Modbus address lists
• Customized address lists Shift each value in accordance with specific requirements and create individual modbus addresses

Modbus whitelisting:

• Improve operational safety via the modbus protocol with intelligent firewall
• Secure data traffic and effectively isolate threats

Comparator:

• 125 comparators in 32 comparison groups
• Early warning if threshold values are exceeded and if discrepancies arise in consumption
• Avoid expensive downtime via overcurrent alarms and collective fault signals
• Reliable data transmission via OPC UA or modbus

Power quality:

• Avoid downtime and interruptions whilst improving operating efficiency
• Identify potential faults and protect systems from damage due to early detection of discrepancies in the measurement circuit
• Record flickers and harmonics up to the 63rd harmonics current
• Capture waveforms for root cause and event analysis

Events and transients:

• Detect transients and events with real-time monitoring
• Quick reaction times due to flexible settings for threshold values
• 18 μs detection of transients

COMTRADE and PQDIF:

• Quick analysis due to a standardized file format
• Data exchange directly from the device via SFTP and web server
